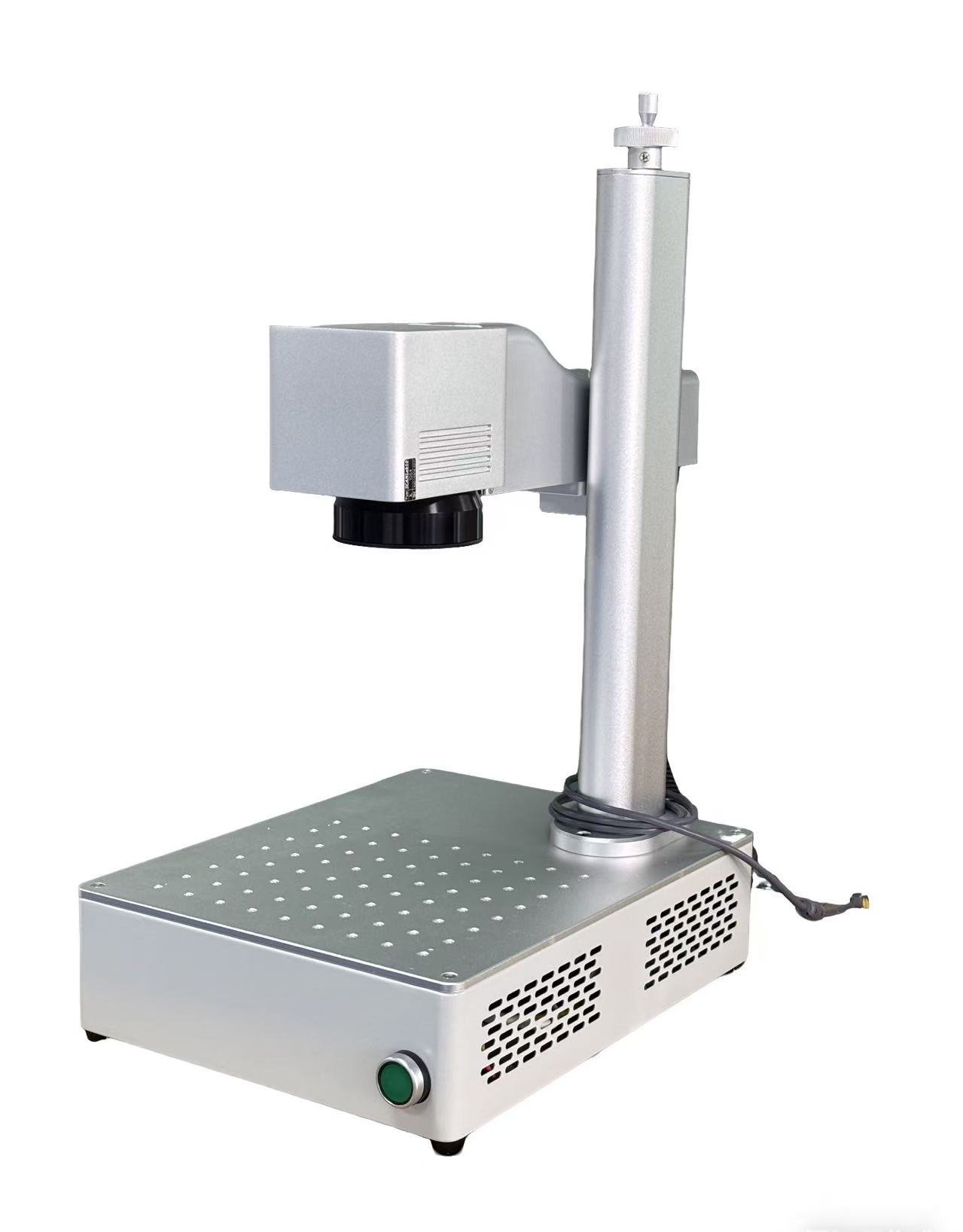

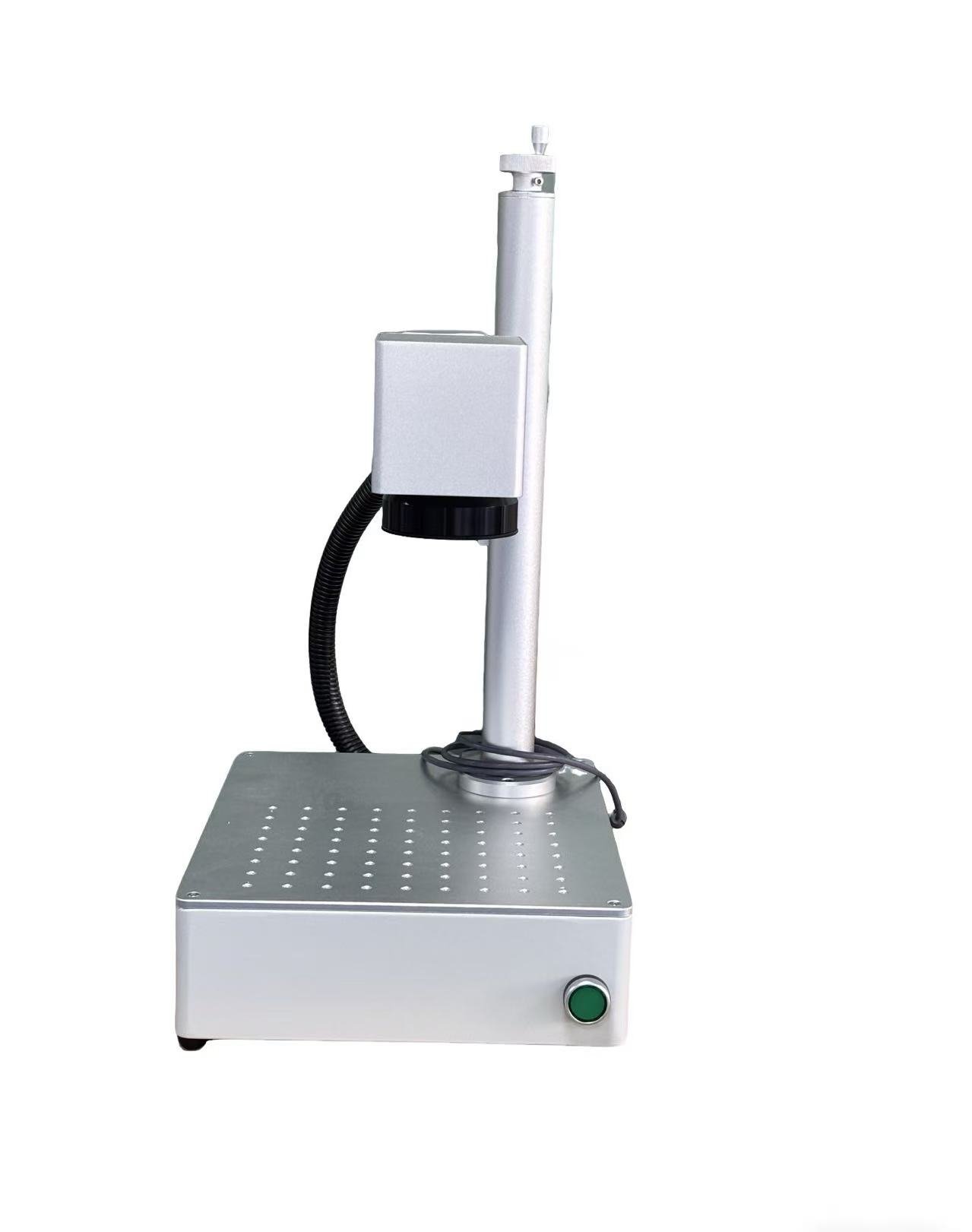

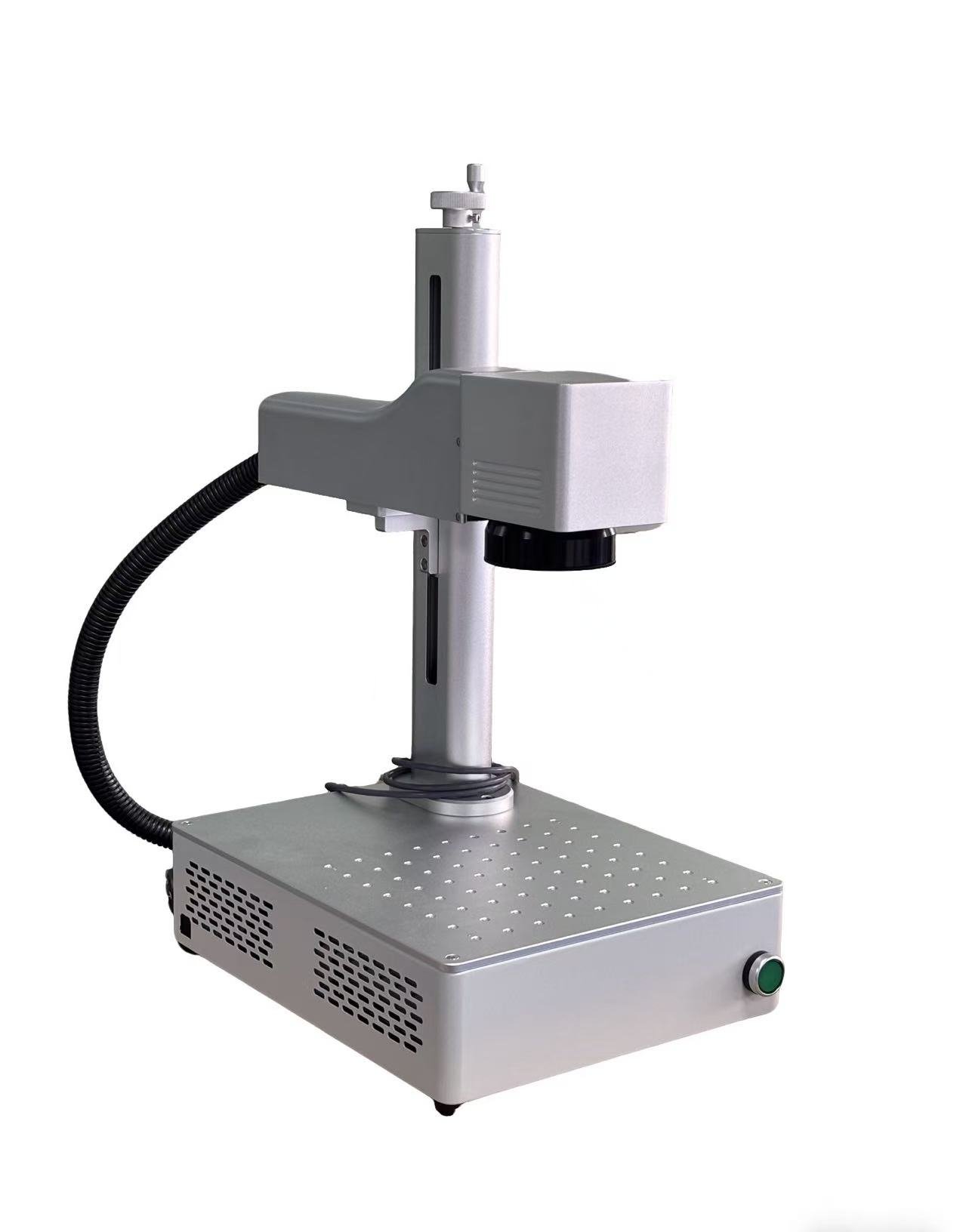

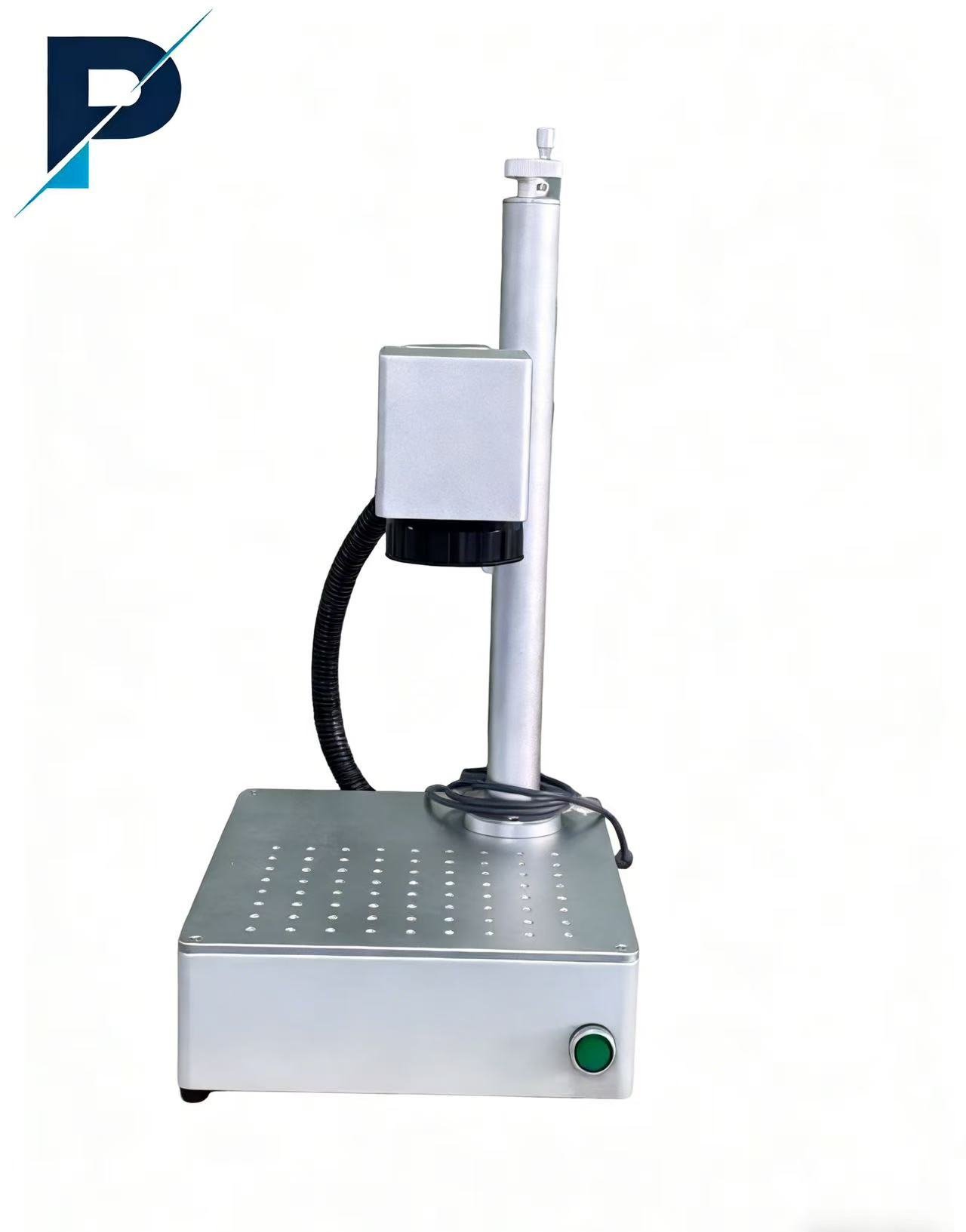

20W-50W Portable Fiber Laser Marker

20W, 30W & 50W All-in-One Fiber Laser Marking Machine

Lightweight and compact, with a weight of only 15 kg.

This all-in-one fiber laser marking machine requires no consumables and no maintenance. It consumes only 0.35 kWh per hour, making it energy-saving and environmentally friendly.

Description
Reviews (0)

Model	PB20	PB30	PB50
Power	20 W	30 W	50 W
Galvo Scanner	SINO RC 1001	SINO RC 1001	SINO RC 1001
Marking Area	110 mm × 110 mm	110 mm × 110 mm	110 mm × 110 mm
Marking Line Width	0.025 mm	0.025 mm	0.025 mm
Minimum Character Size	0.15 mm	0.15 mm	0.15 mm
Power Adjustment Range (%)	0-100%	0-100%	0-100%
Marking Speed	0–1500 mm/s	0–1500 mm/s	0–1500 mm/s
Fiber Cable Length	3 m	3 m	3 m
Laser Wavelength	1064 nm	1064 nm	1064 nm
Software	EZCAD2	EZCAD2	EZCAD2
Cooling Method	Air Cooling	Air Cooling	Air Cooling
Machine Dimensions	290 mm × 420 mm × 600 mm	290 mm × 420 mm × 600 mm	290 mm × 420 mm × 600 mm
Laser Source	MAX / Raycus / Customized	MAX / Raycus / Customized	MAX / Raycus / Customized
Machine Weight	Approx. 15 kg	Approx. 15 kg	Approx. 15 kg
Power Supply Voltage	110V / 220V, 50/60Hz	110V / 220V, 50/60Hz	110V / 220V, 50/60Hz
Total Power Consumption	400 W	400 W	400 W
